Froztec Evaporative Condenser Recold LC

RECOLD LC EVAPORATIVE CONDENSER

The Recold LC Evaporative Condenser is an induced-draft counterflow evaporative condenser with patent-pending heat transfer technology. Its unique design reduces refrigerant charge up to 40 percent and lowers fan energy consumption by up to 50 percent compared to conventional evaporative condensers, while offering installation and maintenance advantages.

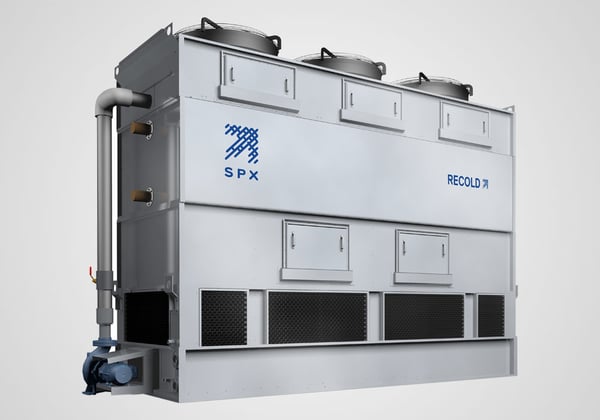

Recold-LC-Evap-1-1

Condensador Evaporativo Recold LC

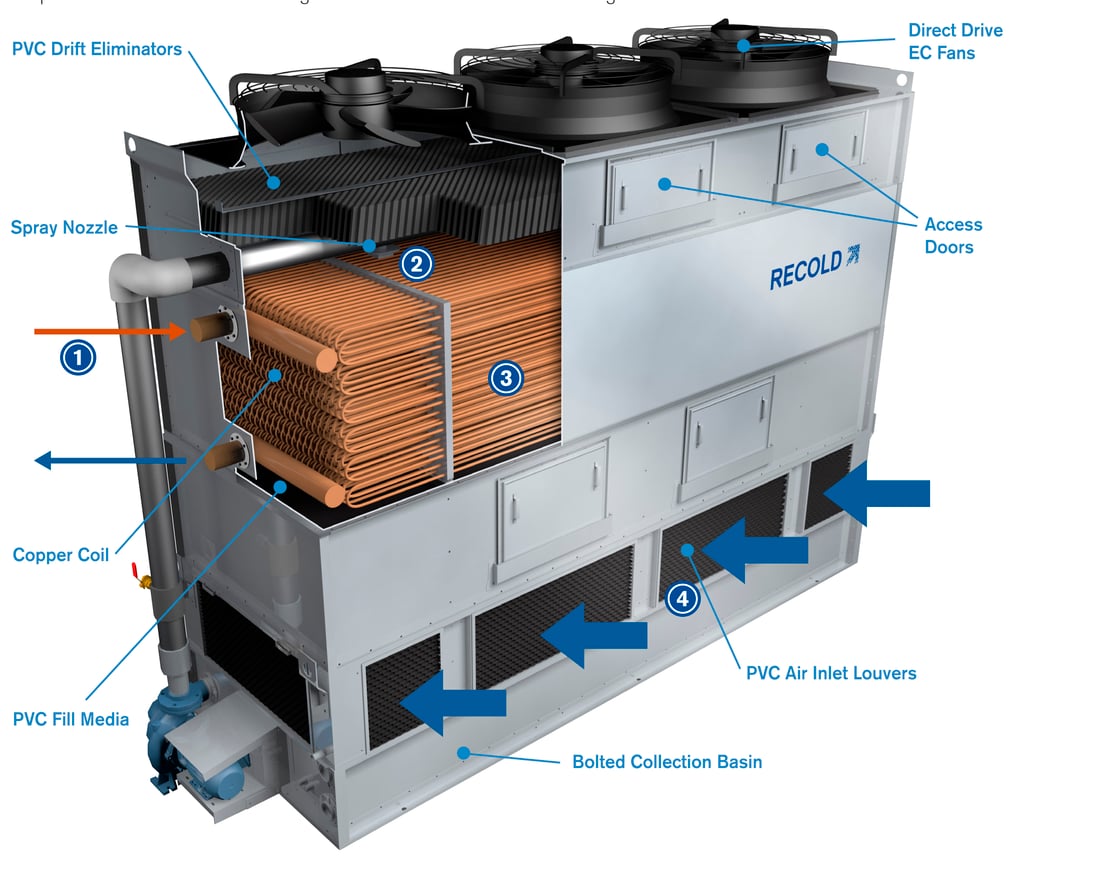

Operation

1. Refrigerant vapor enters the heat transfer coil and is condensed to a liquid as heat is removed.

2. Recirculating water is pumped from the collection basin to the pressurized distribution system and is distributed over the coils.

3. Recirculating water flows over the outside of the coil tubes, removes heat from the refrigerant, and flows onto the fill media below the coil.

4. Air induced through the condenser evaporates a small portion of the recirculating water, rejecting heat to the atmosphere.

Installation Advantages

With standard unit heights less than 10.5 feet, the Recold LC Evaporative Condenser meets many municipal code height requirements and offers advantages for rooftop installations where low visibility is important. Other benefits include single-piece installation, single-point power connection, factory-installed controls, and factory wiring and testing.

Single piece installation
Factory installed controls
Factory wired and tested
Multiple access doors
Corrosion resistant copper coil
Low-clog spray system

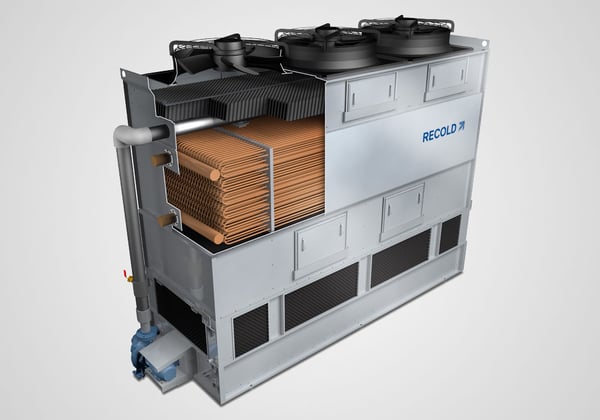

Recold-LC-Evap-2-1

Recold-LC-Evap-3-1

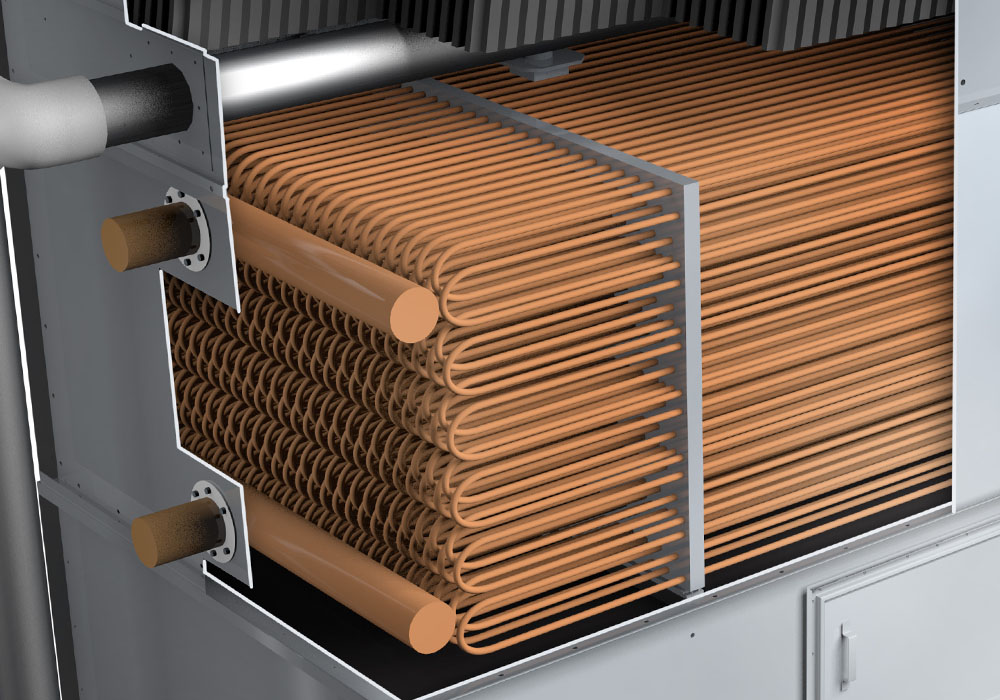

Copper Heat Exchange Coil

Copper heat transfer coils resist corrosion and offer greater thermal efficiency, which contribute to the LC Evaporative Condenser’s compact footprint and long service life. With 30-40 percent lighter weight than comparable galvanized steel coils, the copper coils are also bacteriostatic, recyclable, require less refrigerant charge, and are easily circuited to accommodate multiple rack systems.

EC Direct Drive Fans

High-efficiency, low-sound electronically commutated motors with direct drive airfoil impellers require no routine maintenance. Integral speed control eliminates the need for an external variable speed drive.

Clog-Resistant Water Distribution System

Large 1-7/8” orifice spray nozzles help prevent debris build-up and clogging.

Froztec-Recold-LC-EN

Multiple Access Doors

Six to 10 gasketless doors per cell can conveniently be removed for access to interior components, such as the spray, coil and fill compartments.

PVC Air Inlet Louvers

PVC air inlet louvers restrict splashout and offer easy access to the collection basin from all sides.

Robust Construction

As a standard, the LC Evaporative Condenser includes a bolted stainless steel collection basin. All collection basin and air inlet parts exposed to circulating water, including coil supports, attaching hardware and optional basin components, are heavy-gauge series 300 stainless steel. Heavy-mill galvanized steel comprises the balance of the tower structure and mechanical supports.
